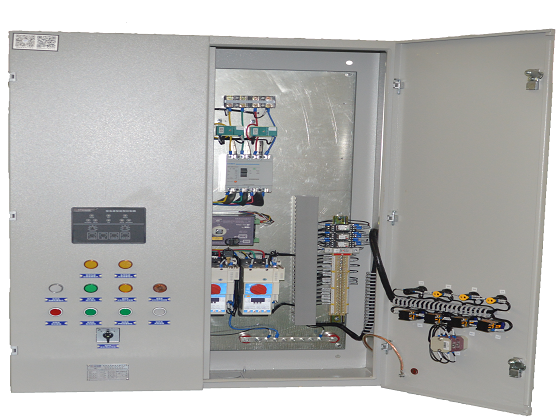

Product details

Main feature：

Ø  This product is made of 1-1.5 steel plate bending and welding, and the installation methods are divided into two types: wall-mounted surface installation and wall-mounted concealed installation;

Ø  The box body is designed to cover the live parts safely. The switch handle needs to be out of the box cover, which can be operated outside the box. Open the box cover for maintenance, and a small door is also installed on the box cover;

Ø  The distribution box is equipped with a neutral wire terminal (or copper bar) and a ground protection wire terminal (or copper bar) corresponding to the output circuit;

Ø  The inlet and outlet holes of the box are knock-out holes, which are distributed at the upper and lower ends of the box, or a waist-shaped long hole can be opened according to the user's requirements and sealed with a cover plate;

Ø  The dimensions of the wall-mounted surface-mounted type and the wall-mounted concealed-mounted type are basically the same, and the difference is that the size of the dry-concealed box is slightly larger than that of the surface-mounted box;

Ø  The metering watt-hour meter is installed in a separate space. There is an observation window and a lead sealing device on the door of the metering room. The incoming line switch is placed on the left side.

Ø  Small room, the outlet switch is located in the lower right room, easy to enter and exit；

Ø  The lighting distribution box is a combination of a micro switch and a power dark socket. It is mainly assembled with electrical components of 86x86 mm. It can be arranged in any combination, and it is easy to disassemble and assemble, with strong interchangeability and easy selection.

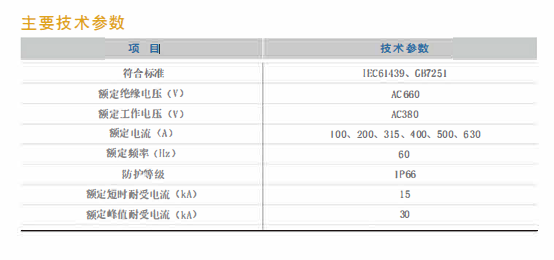

The main parameters：
