Product details

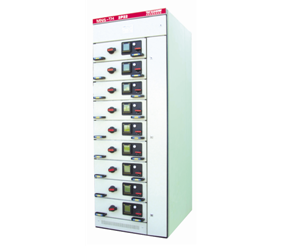

MNS low-voltage withdrawable switchgear adopts advanced modularized profile assembly structure, which can be operated from the front or the reverse. It can be widely used in various low-voltage power supply and distribution systems such as power plants, substations and large buildings, airports, hospitals, industrial and mining enterprises, and subway projects. The maximum power distribution capacity is 2500KVA.

Features:

 ❶The main frame is composed of cold-rolled steel plate or aluminum-zinc-clad plate C-section, which can be operated from the front or the reverse.

 ❷Each functional room is isolated from each other and divided into functional room, busbar room and cable room, and the functions of each room are relatively independent.

 ❸The horizontal busbar is arranged horizontally behind the cabinet, which enhances the ability of the busbar to resist electric power and enables the main circuit to have high short-circuit strength capability. At the same time, the horizontal main busbar can also be installed on the top of the cabinet.

 ❹The drawer is equipped with a mechanical interlocking device and adopts high-strength flame-retardant plastic components with high safety protection performance.

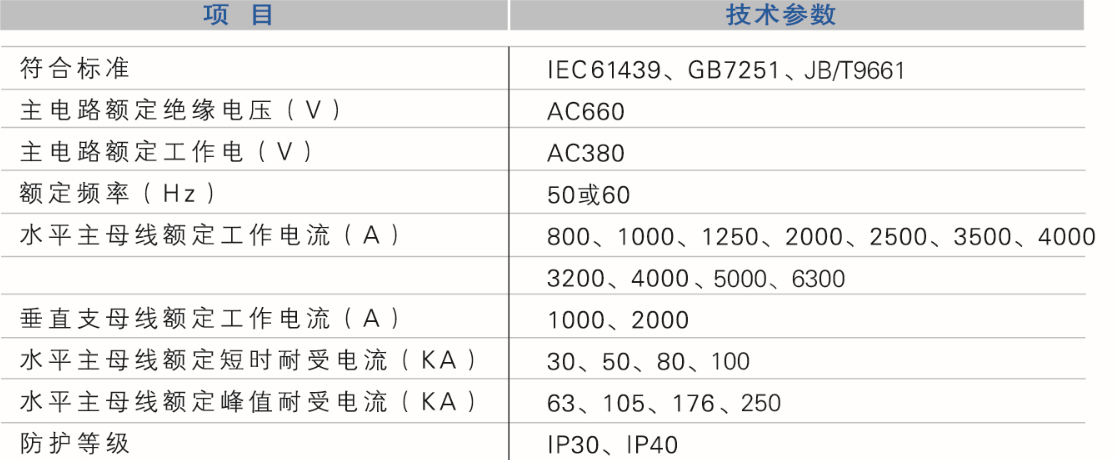

The main technical parameters：
