Product details

Main feature：

     1. Pre-charging function: users can only use electricity when they buy electricity first. When the electricity purchased by the user runs out, the power is automatically controlled;

     2. The management center (master station) controls the device through GPRS and sends power purchase parameters, sets and inquires the prepaid electricity value, automatic meter reading information, prepaid control parameters, and collects power consumption, maximum demand, and electric energy indication values. , status and other information.

     3. The device is composed of main switch/transformer unit, special-purpose change collection terminal, multi-function meter, etc. The special-purpose change collection terminal has passed the test of the Electric Power Academy and can be connected with the electricity information system of the power company, and the communication protocol with the main station conforms to DL /T645--1997.

  4. The special change acquisition terminal can set and query the terminal group address, terminal configuration and configuration parameters, communication parameters, etc. by the master station, and can query the terminal ID.

     5. The special change acquisition terminal communicates with the electric energy meter through RS485, and copies and stores the electric energy meter data according to the set reading interval; it can accept the data forwarding command from the master station, and transmit the data of the electric energy meter directly to the master station through the remote channel. Independent master station communication system, and can link with the provincial company master station system. ;

     6. The control box adopts three-point cabinet door lock + anti-theft and waterproof lock, and the cabinet door is sealed with lead. The door switch of the metering cabinet detects and records the state of the cabinet door, and the cabinet door is illegally opened to alarm and power off. When the user's power consumption is not much, it has the function of power failure or sound and light alarm, prompting the user to purchase electricity;

     7. Data protection function: data is automatically protected after a power failure. In the case of no power, the data in the table can be stored for more than 10 years;

     8. The measurement accuracy of the current transformer is 0.2;

     9. The switch in the metering cabinet is a high-quality on-off device with high reliability, no noise and long service life.

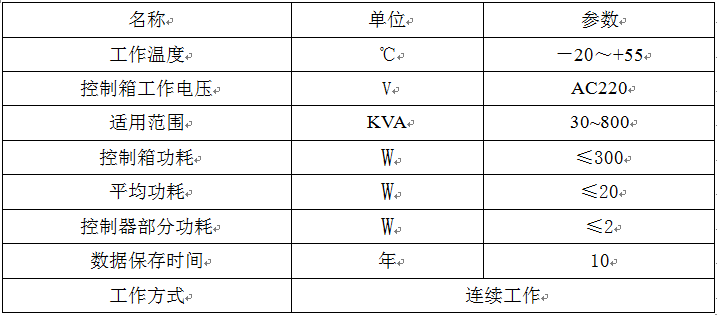

The main technical parameters:：

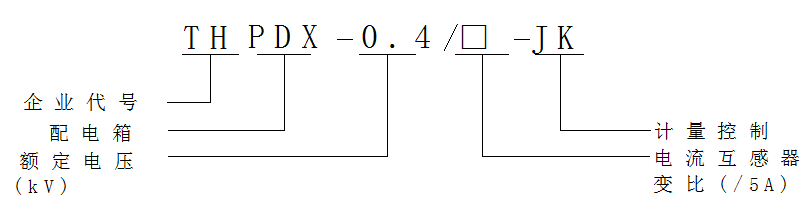

Model Description：
